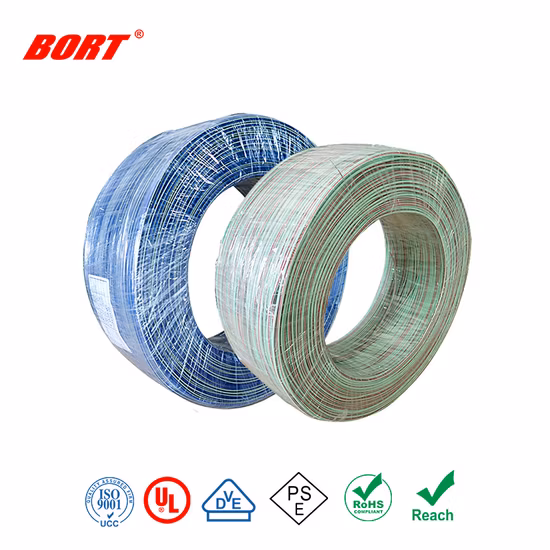

Flry

Basic Info.

Model NO.	FLRY-B
Material Shape	Round Wire
Range of Application	Flame Retardant
Certification	ISO9001, CE, CCC, RoHS, VDE
Warranty Time	at Least 10 Years for Proper Use
Appliance	Internal Wiring of Electronic&Electrical Equipment
Factory Management Standard	ISO9001:2008
Annual Capacity	300,000kms
Standard of Production	RoHS & Reach
Color Available	Any Colors
Delivery Time for Mass Production	15-30days
Delivery Time for Samples	3-5days
Weight	About 1kg/1000FT
Packaging	1000FT/Spool
Transport Package	Reel, Spool, Pallet
Specification	Customize
Trademark	BORT
Origin	China
HS Code	8544491900
Production Capacity	300000km/Year

Product Description

FLRY-B thin-wall automotive cables for automotive and marine applications
PRODUCT DESCRIPTION:
★Rated temperature:90ºC
★According to DIN72551-6/1996
★Concentric stranded,tinned or bare copper conductor
★PVC insulation
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★Resistant to oil,heat and abrasion
★Interal wiring in autmobile where high flexibility
thermo and mechanical strength are required

Conductor		Finished product			Maximum Resistance at 20ºC
Cross Sectional Area	NO.of Cond	Insulation Thick.	Outside Thick.	Weight
mm2	No./mm	mm	mm	kg/km	Ω/mm
0.22	7/0.21	0.3	1.20	3.52	84.80
0.35	7/0.26	0.3	1.30	4.79	52.00
0.5	19/0.19	0.3	1.60	7.07	37.21
0.75	19/0.23	0.3	1.90	10.19	24.70
1	19/0.26	0.4	2.10	12.79	18.50
1.5	19/0.32	0.4	2.40	18.31	12.70
